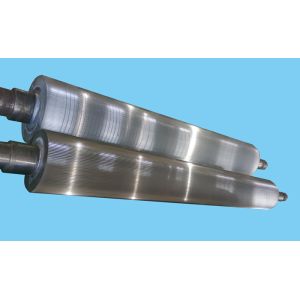

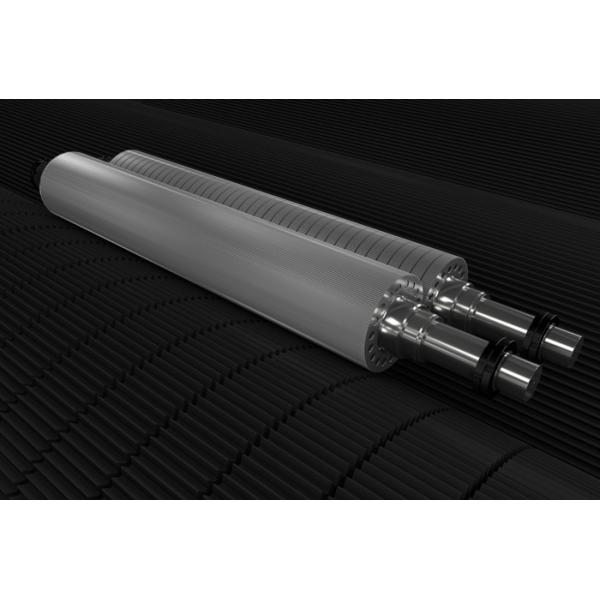

High Speed Hard Chrome Plated Roller 2300mm Width Corrugated Single
Facer
Flute Profile
| Flute | Profile | Height(mm) | Pitch(mm) | Flutes/300mm | T.U.R |
| A | UV | 4.5-5.0 | 8.0-9.5 | 34±3 | 1.45-1.52 |
| C | UV | 3.5-4.0 | 6.8-7.9 | 41±3 | 1.37-1.47 |
| B | UV | 2.5-3.0 | 5.5-6.5 | 50±4 | 1.33-1.41 |
| E | UV | 1.1-2.0 | 3.0-3.5 | 93±6 | 1.24-1.36 |
| F | UV | 0.8-1.0 | 2.2-3.2 | 115±20 | 1.19-1.25 |
| G | UV | 0.6-0.8 | 1.8-2.8 | 136±20 | 1.15-1.20 |
| N | UV | 0.4-0.6 | 1.2-2.2 | 193±55 | 1.10-1.15 |
| Others | UV | Customized | Design | Design | Design |
Meijia in accordance with the different customer needs and on-site
situation, has developed special flute type,which circle parabola
is adopted for the medium-high outline,solving the problems like
collapsed flute,poor lamination,inner liner frothing,heavy scoring
on inner liner from the very beginning.
Introduction
--The largest professional corrugated roller manufacturer in
northern of China
--50CrMo refined forging steel supplied by the best manufacturer in
China.
--A, C, B, E, F, G, N flute corrugated rolls
--High Speed can reach to 200m/min
--Hard Chrome 0.06-0.08mm
--Medium frequency quenching heating treatment machine makes --the
hardness of base steel more than HRC58 and harden layer 8-12mm.
--High precision and high performance CNC grinding machine equipped
with Germany Siemens control system.
--We design the flute profile according to customer’s medium paper
GSM, speed, FCT requirement. The flute profile is more reasonable,
suitable to customer’s machine
--Our corrugated rollers has been exported to many countries such
as Korea, Russia, Egypt, India, Thailand, Myanmar, etc.
--Supply corrugated rollers for all kinds of corrugator line such
as Fosber, BHS, BW Paper System, K&H, HSIEH HSU,Fuli, Wanlian,
TCY, Champion, West River, Mingwei and so on.
